TOA TU-632M Driver Unit

Description

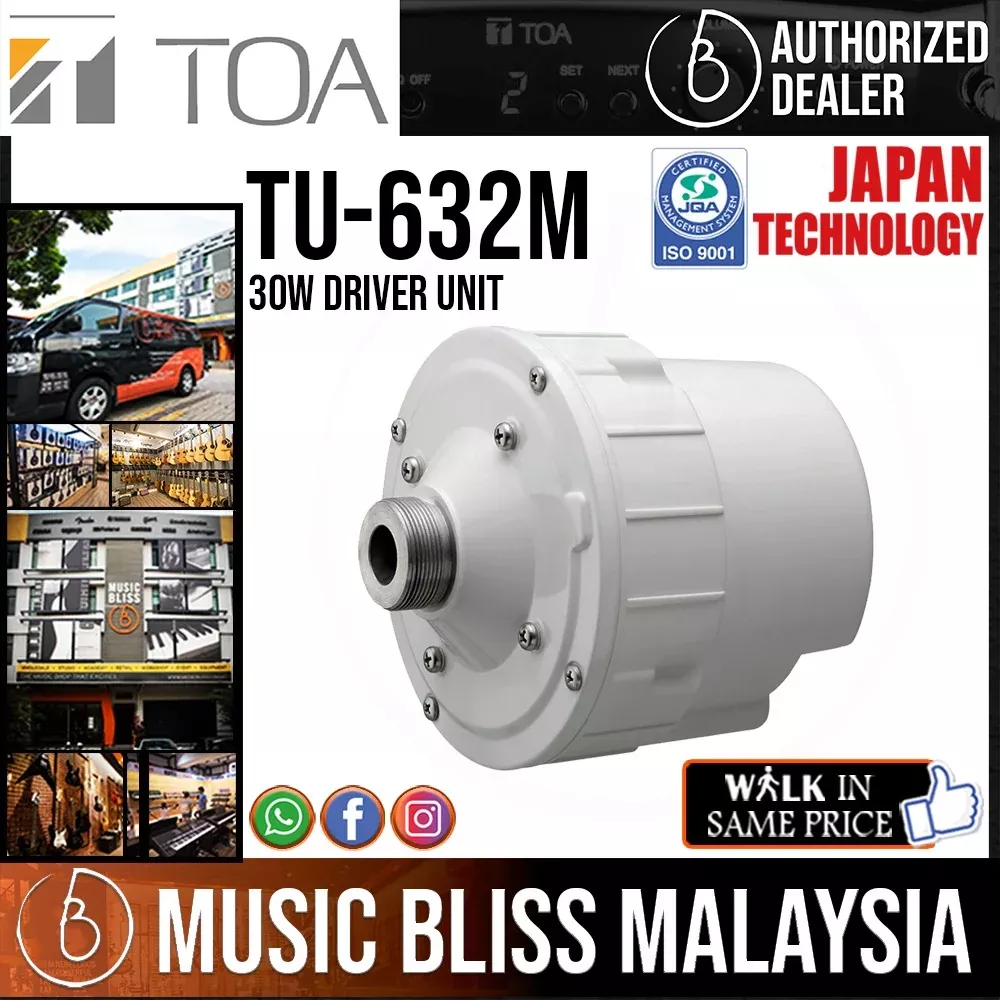

TOA TU-632M Driver Unit (TU632M)

The TU-632M is a highly intelligible driver unit suited to public address announcement applications. The driver unit is used in combination with a suitable horn (optional). Powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability.

SPECIFICATIONS

• Applicable Horns
• TH-652
• Rated Input
• 30 W
• Line Voltage
• 100 V line or 70 V line
• Rated Impedance
• 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
• 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
• Output Sound Pressure Level
• 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
• Frequency Response
• 150 Hz – 6,000 Hz (When operated with JIS C 5504 standard horn.)
• IP Code
• IP65 (When a driver is operated with a horn.)
• Horn Coupling
• 1 – 3/8 18 threads (inch screw)
• Polarity
• Hot: Black, Com: White
• Operating Temperature
• -20°C to +55°C (-4°F to +131°F) (must be free from dew condensation)
• Finish
• Upper Cover: Aluminum, White, powder coating
• Unit Case: HIPS. White
• Screws: Stainless steel
• Speaker cable: Polyvinyl chloride insulated cabtyre cable
• (6 mm (0.24″) in diameter, 450 mm (17.72″) in length), White

Product Dimension Shipping Weight: 1.5 kg
