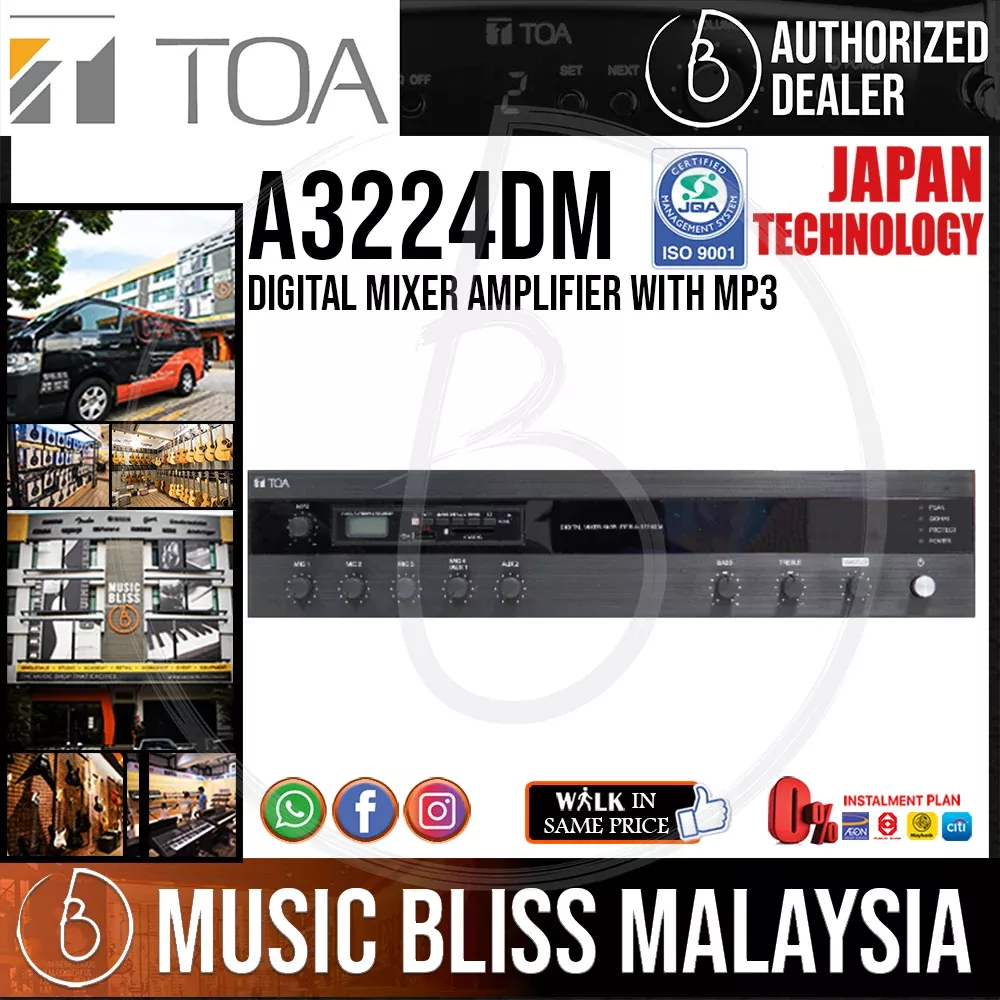

TOA A-3224DM 240-watt Digital Mixer Amplifier

Description

TOA A-3224DM 240-watt Digital Mixer Amplifier (A3224DM)

A-3224DM is a high performance yet cost-effective mixer power amplifier equipped with MP3 and Bluetooth function. Ideal for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.

SPECIFICATIONS

• Power Source
• 100 – 240 V AC, 50/60Hz
• Rated Output
• 240 W
• Power Consumption
• 62 W (AC operation at 1/8 maximum output without clip)
• Frequency Response
• 50 – 20,000 Hz
• Input
• MIC 1: 1 mV (-60 dB*), 600 Ω, balanced, phone jack, selectable to RJ45
• MIC 2-3: 1 mV (-60 dB*), 600 Ω, balanced, phone jack
• MIC 4: 1 mV (-60 dB*) 600 Ω, balanced, phone jack, selectable to AUX 1
• AUX 1: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4
• AUX 2: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack
• MP3: LED Display, Support USB, SD/MMC card (up to 32GB), Bluetooth, Radio FM, Record
• Output
• Speaker out: Speaker Output in screw type terminal
• Direct line (selectable): 42 Ω (100 V) or 4 Ω
• Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
• Phantom Power
• DC +21 V (MIC 1)
• S/N Ratio
• Over 60 dB
• Total Harmonic Distortion
• Under 1% at 1 kHz, 1/3 rated power
• Tone Control
• Bass: ±10 dB at 100 Hz
• Treble: ±10 dB at 10 kHz
• Muting
• MIC 1: Mutes other input signals by 0-30 dB attenuation
• Indicator
• Power, Signal , Peak, Protect
• Ventilation
• Fan Cooling
• Finish
• Panel: ABS resin, black
• Case: Steel plate, black

Product Dimension Shipping Weight: 4.0 kg
