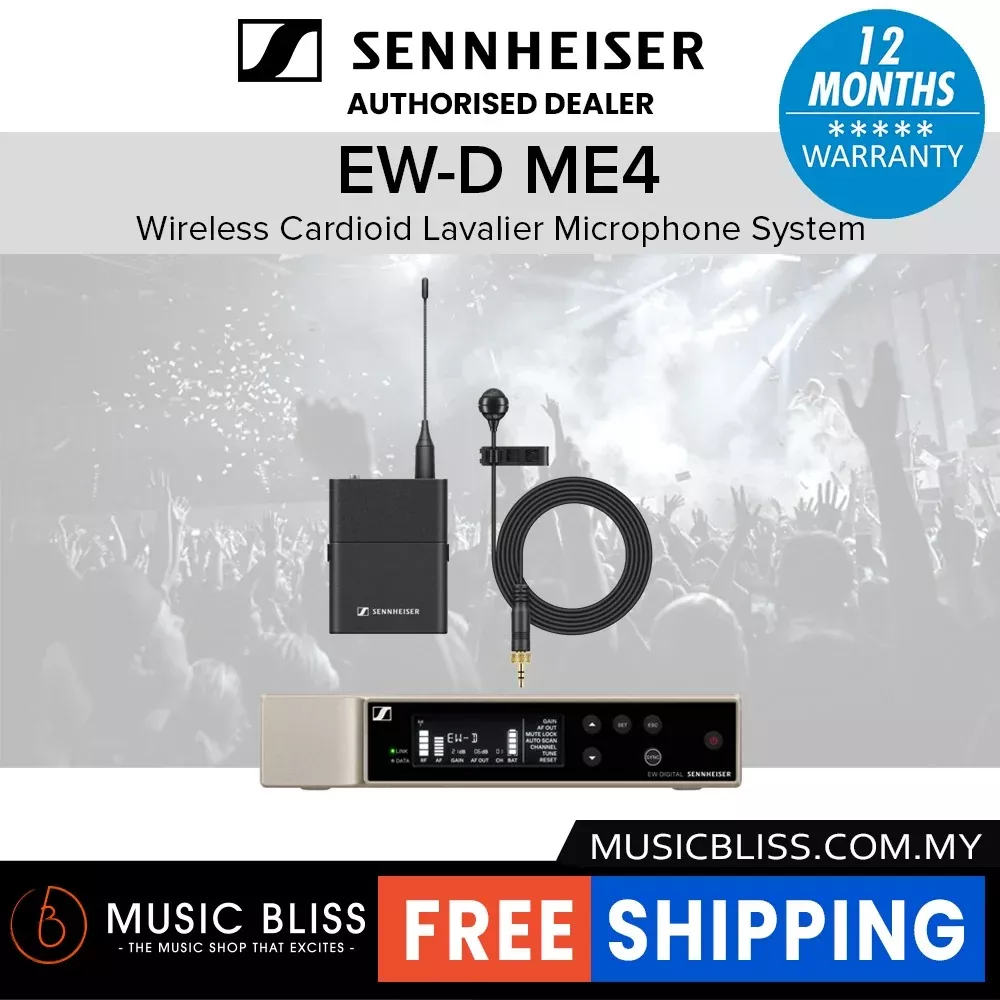

Sennheiser EW-D ME4 SET Digital Wireless Cardioid Lavalier Microphone System

Description

Sennheiser EW-D ME4 SET Digital Wireless Cardioid Lavalier Microphone System

Versatile and feature-rich digital wireless system for those who speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter and unobstrusive clip-on microphone ME 4 (cardioid) with high speech intelligibility suit perfectly for daily use on stage.

FEATURES

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

SPECIFICATIONS

• Frequency range
• 470.2 – 526 MHz
• 520 – 576 MHz
• 552 – 607.8 MHz
• 606.2 – 662 MHz
• 630 – 662 MHz
• 662 – 693.8 MHz
• 1785.2 – 1799.8 MHz
• 823.2 – 831.8 MHz & 863.2 – 864.8 MHz
• 925.2 – 937.3 MHz
• THD, total harmonic distortion
• ≤ -60 dB for 1 kHz @ -3 dBfs input level
• Operating temperature
• -10 °C – +55 °C (14 °F – 131 °F)
• Operating relative humidity
• 5 – 95 % (non-condensing)
• Audio frequency response
• 20 Hz – 20 kHz (-3 dB) @ 3 dBfs
• EW-D EM
• Dimensions
• 212 x 44 x 189 mm
• Weight
• approx. 1000 g (without antennas and power supply)
• Audio output level
• 18 dBu max.
• Transmission power
• BLE: max. 10 mW EIRP
• Input voltage range
• 11 – 13 V ⎓
• Current consumption
• ≤ 300 mA
• EW-D SK
• Dimensions
• 63 x 80 x 20 mm (without antenna)
• Weight
• approx. 120 g
• Power supply
• 2 AA batteries 1.5 V (alkaline manganese)
• or BA 70 rechargeable battery pack
• Current consumption
• <300 mA
• Input voltage range
• 2.0 – 4.35 V
• Transmission power
• Audio link: 10 mW
• ERP (Range Y1-3): 12 mW ERP
• BLE: max. 10 mW EIRP
• ME 4
• Connector
• 3.5 mm jack
• Frequency response
• 50 to 18,000 Hz
• Max. sound pressure level
• 120 dB
• Cable length
• approx. 1.60 m
• Transducer principle
• pre-polarized condensor microphone
• Pick-up pattern
• cardioid
• Sensitivity in free field, no load (1kHz)
• 40 mV/Pa
• Equivalent noise level
• 31 dB
• Power supply
• 7.5 V

Product Dimension Shipping Weight: 3.6 kg
