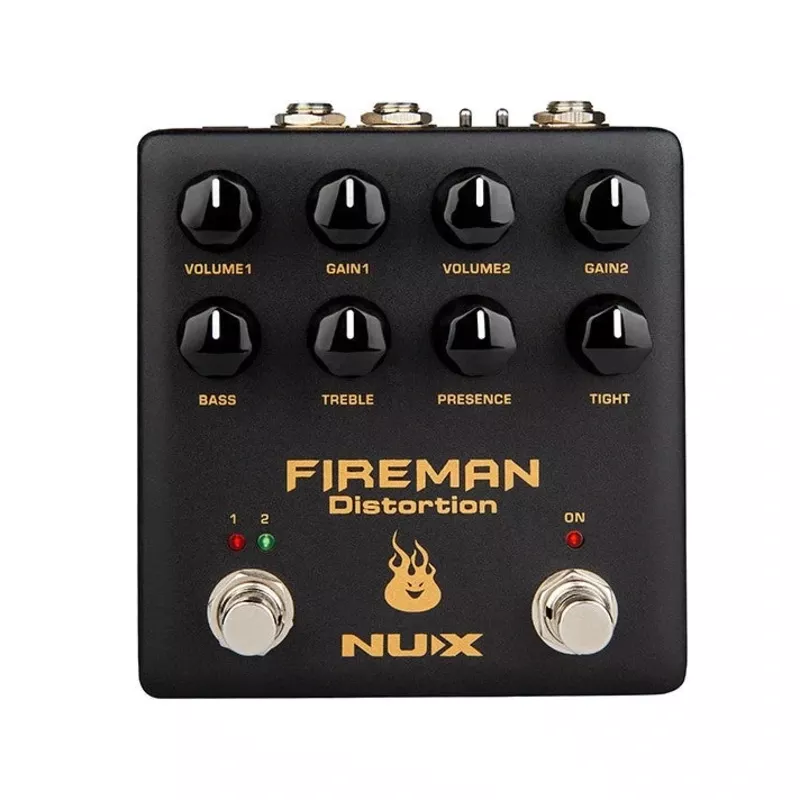

NUX Fireman Distortion Pedal NDS-5

Description

DescriptionDual Channel Brown Sound in a Box. FIREMAN is based on the legendary amplifier builder’s famous distortion pedal. It’s a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V / 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range

Bass: Adjusts the low-end response of the distortion sound. Treble: Adjusts the high-end response of the distortion sound. Presence: sets the ultra-high frequency of the distortion sound. Tight: forms the low frequency content. (Lower it to tighten the sound.) Volume1: adjusts the output level in channel1. Gain1: adjusts the sound distortion situation in channel1. Volume2: adjusts the output level in channel2. Gain2: adjusts the distortion range of the sound in channel2. Footswitch 1/2: Chooses the current channel for 1 or 2. On Footswitch: Enables or disables the distortion sound. Input: Connects to your guitar or guitar side signal. Output: connects to amplifier or amp side. Ext. Sw: connects with extra double footswitches to replace the 2 footswitch function on the pedal. bf/tb toggle switch: bf means buffer bypass, tb means true bypass. 18v/9v toggle switch: the pedal uses 9v power supply, you can choose the 18v position to double the working voltage inside to get a wider dynamic range. DC Jack: Connect with 9v negative peak power with 100mA adapter. Modern brown sound in a box. True-bypass / buffer-bypass toggle switch. 18v/9v toggle switch to achieve different dynamic range. 2 independent gain, volume knobs for rhythm / solo application. Frequency response: 20hz~20khz- 1db Input impedance: 2.2m? Output impedance: 1m? Power supply: 9v dc, tip negative, acd-006a, Dimensions: 105 (l)115 (w)58 (h) millimeter Weight: 460g
