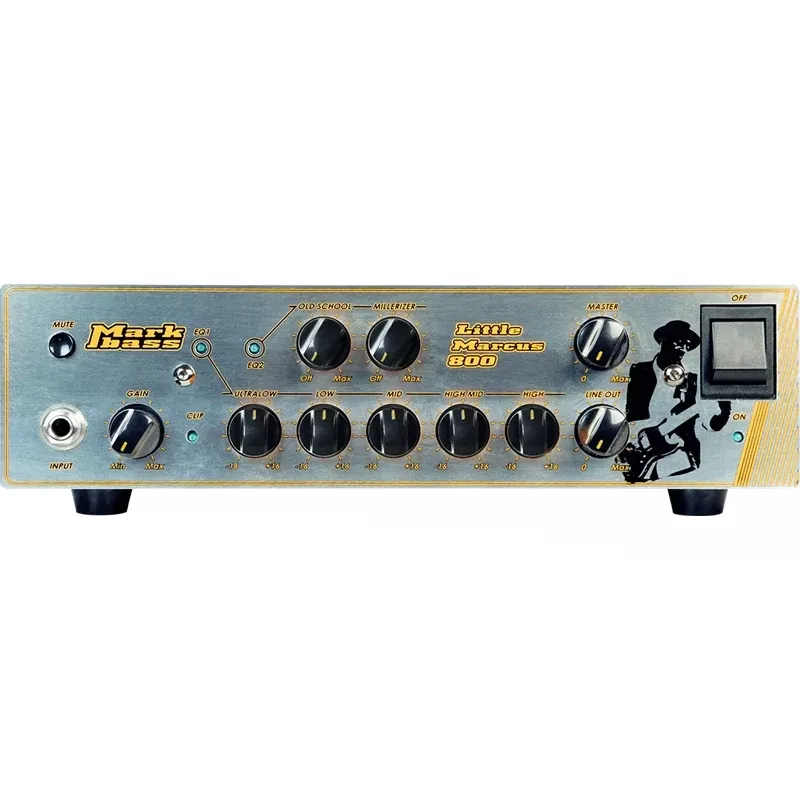

Markbass Little Marcus 800 Bass Amplifier Head

Description

INPUTS

• INPUT:impedance 500 Kohm, max. voltage 9 Vpp
• EFFECT RETURN:impedance 33 Kohm, max. voltage 10 Vpp

CONTROLS

• GAIN:-46 dB to +23 dB range
• MASTER VOLUME
• LINE OUT LEVEL
• MUTE switch
• GROUND LIFT(switch on rear panel)
• PRE/POST EQ(switch on rear panel)
• FSWinput for (optional) footswitch to turn on/off EQ1 and EQ2

EQUALIZATIONEQ1

• ULTRALOW:Level 16 dB (Freq. 65Hz)
• LOW:Level 16 dB (Freq. 180Hz)
• MID:Level 16 dB (Freq. 500 Hz)
• HIGH MID:Level 16 dB (Freq. 1.4 KHz)
• HIGH:Level 16 dB (Freq. 3.8 KHz)

EQ2

• OLD SCHOOL:Variable LOW PASS From 20KHz to 200Hz
• MILLERIZER:5-12 KHz BAND PASS Filter (Level 0 /+10 dB)

OUTPUTS

• LINE OUT:balanced XLR, max. voltage 20 Vpp
• EFFECT SEND:unbalanced, max. voltage 20 Vpp (pre-EQ)
• TUNER OUT:unbalanced, max. voltage 2 Vpp
• SPEAKER OUT:speakon

OTHER

• WEIGHT:6.61 lbs / 3 Kg
• WIDTH:10.87 in. / 27.6 cm
• DEPTH:9.84 in. / 25 cm
• HEIGHT:3.27 in. / 8.3 cm
• OUTPUT POWER:800W RMS @ 4 ohms / 500W RMS @ 8 ohms
