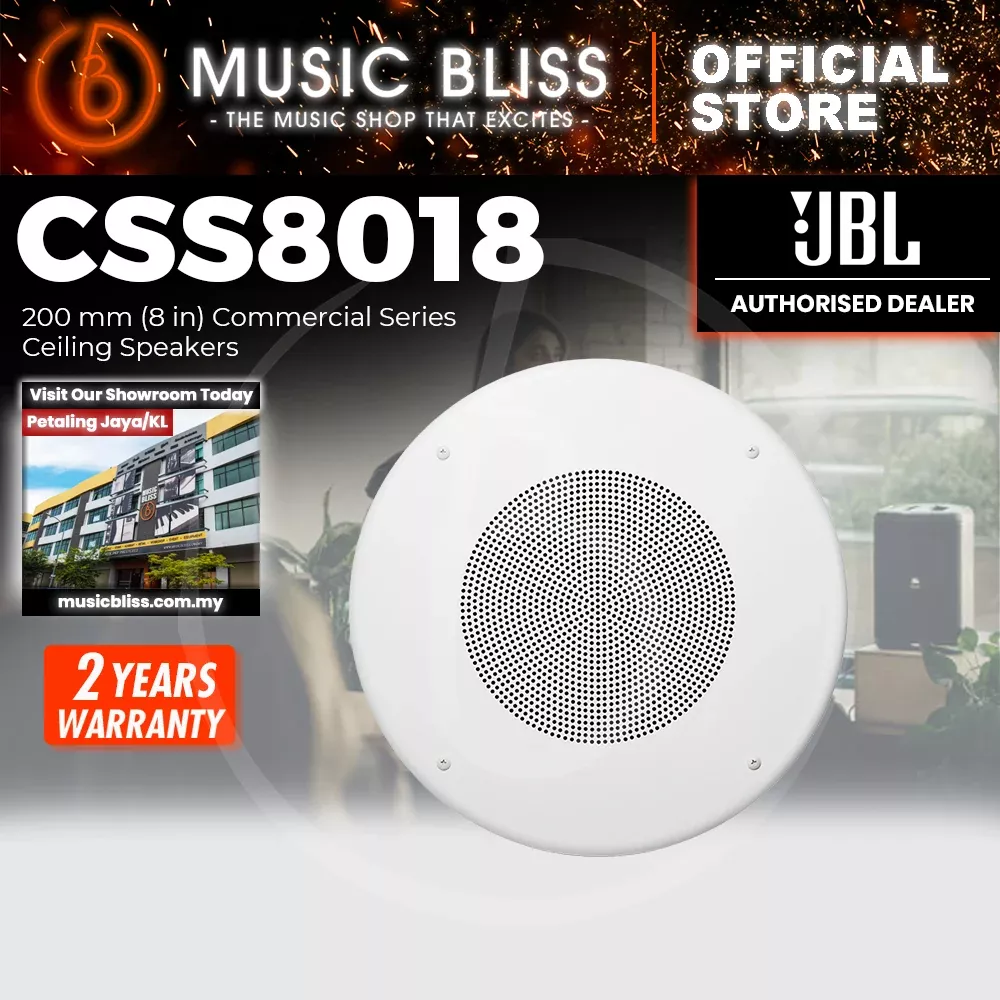

JBL CSS8018 8″ High-Output Multi-Tap Ceiling Speaker

Description

JBL CSS8018 8″ High-Output Multi-Tap Ceiling Speaker (CSS-8018)

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

The CSS8018 is a high-powered 200mm (8 in) speaker with 97 dB sensitivity and a 10-Watt multi tap transformer.The speaker’s triple-voltage transformer provides versatility by allowing use on 100V, 70V, or 25V distributed loudspeaker lines.

FEATURES

• High-quality dual-cone ceiling speaker
• Very high 97 dB sensitivity
• 10 Watt multi-tap transformer for 100V, 70V, and 25V distributed speaker lines
• Requires CSS-BB8 pre-install backcan

SPECIFICATIONS

• Driver Size (dual-cone)
• 200mm (8 in)
• Driver Sensitivity (mid-range)
• 97 dB
• Frequency Range
• 90Hz – 17kHz
• Coverage Angle
• 110 degrees
• Driver Continuous Power Handling
• 20W
• Transformer Insertion Loss
• 1.5 dB max.

Product Dimension Shipping Weight: 1.2 kg
