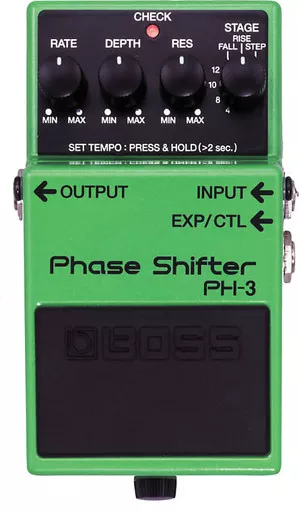

Boss PH-3 Phase Shifter Guitar Effect Pedal

Description

Boss PH-3 Phase Shifter Guitar Effect Pedal

MODERN PHASING WITH TAP TEMPO SYNC

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new “Rise” and “Fall” modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3’s Rate, Filter and Tempo.

• Compact pedal with versatile vintage and modern BOSS phasing
• New “Rise” and “Fall” modes create unidirectional phasing
• Includes classic multi-stage phasers with selectable stages
• Realtime control of Rate, Filter, and Tempo via optional expression pedal
• Tap tempo sync of phasing effects
• BOSS 5-year warranty

“Rise” and “Fall” Effects

In addition to standard up and down cycles, the new PH-3 Infinite Phaser can produce entirely upward or downward moving sounds through its new Rise and Fall effects. There’s also 4-, 8-, 10-, and 12-stage phasers, plus a Step effect.

Total Control

Syncing the PH-3’s phasing effects can be achieved by simply tapping the pedal to the tempo desired. Or, for maximum control, connect an optional expression pedal to control both rate and filter in real time as you play. Nominal Input Level    -20 dBuInput Impedance    1 M ohmsNominal Output Level    -20 dBuOutput Impedance    1 k ohmsRecommended Load Impedance    10 k ohms or greaterResidual Noise Level    -92 dBu (IHF-A, Typ.)Connectors    INPUT Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)Power Supply    DC 9 V: Dry Battery 9 V type (6F22/9 V), AC AdaptorCurrent Draw    50 mA (DC 9 V)Accessories    Dry Battery 9 V type (6F22/9 V)Options    AC Adaptor (PSA-Series), Expression Pedal (Roland EV-5), Footswitch (FS-5U)Size and Weight ( incl. battery )Width    73 mm    2-7/8 inchesDepth    129 mm    5-1/8 inchesHeight    59 mm    2-3/8 inchesWeight    0.4 kg    0 lbs. 15 oz.
